Threaded Flanges
Threaded flanges look very similar to Slip-On flanges but the main difference is that the threaded flange has been bored out to match a specific pipe inside diameter. The backside of this center opening is then threaded with the relevant-sized tapered pipe thread. Threaded Flanges can be used in very high pressure services and their major advantage is that they can be assembled without welding.

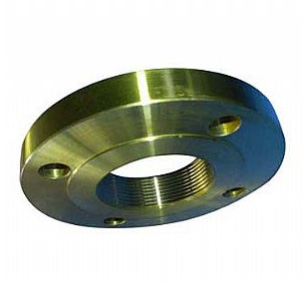

●Name:
Thread Flange
●Model No.
WPP 013 FLT-1
●Materials
ASTM A105, A350 LF2 A182 F304/304L, F316/316L, F316H, F310, F321 (SS), A182 F11, F22 (AS)
●Standards
ANSI B16.5, BS4504, EN1092-1, DIN
●Pressure Range
ANSI Class 150 to Class 600
●Size Range
1/2 to 6 inches (DN 15 to DN 150)
●Coating
Black Coating, Yellow color, Galvanized, Hot Dipped

●Name:
Screw Thread Flange
●Model No.
WPP 013 FLT-2
●Materials
ASTM A105, A350 LF2 (CS) A182 F304/304L, F316/316L, F316H, F310, F321 (SS), A182 F11, F22 (AS)
●Standards
ANSI B16.5, BS4504, EN1092-1, DIN
●Pressure Range
ANSI Class 150 to Class 600
Size Range
1/2 to 6 inches (DN 15 to DN 600)
●Coating
Black Coating, Yellow color, Galvanized, Hot Dipped
